Year of commercialization: 2016
Designed for running at home or in small clubs

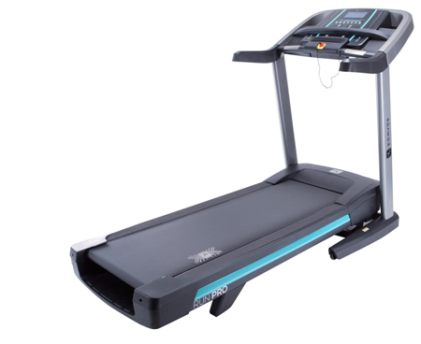

Wide, sturdy treadmill for intensive use - 35 hours per week - at home or in small clubs.
PRODUCT BENEFITS :
VERSATILITY : Max speed 22 km/h, motorised incline from 0 to 12%
USER COMFORT : Running deck: 51 x 150 cm
COACHING : 20 programmes, 5 functions: time, speed, distance, calories, bpm
The treadmill is not connected correctly
=> Check the connection of the mains socket, then make sure that the treadmill's main switch is set to "1"
=> Then check that the safety key is in position
=> Check and press the circuit-breaker if it has tripped
The screws are loose
=> Tighten all the screws in the uprights
The running belt is not centred
=> Refer to chapter "Centering the running belt"
The running belt is not properly lubricated
=> Refer to chapter "Lubricating the running belt"
Check that the running belt is correctly tightened
=> Refer to chapter "Adjusting the tension of the running belt"
Running belt tension is too high
=> Check the running belt tension so that the movement of the belt between the board and belt is about 3 centimetres at the middle of the board
=> If this is not the case, turn the two hex screws at the rear of the treadmill on each side of the roller and then loosen the running belt
The treadmill is calibrating
=> Switch the treadmill on and insert the safety key onto the console
=> The running platform gradually rises to its maximum level and then comes back down into its horizontal position Wait for the whole operation to complete (the operation may take several minutes)
Regular maintenance is necessary to maintain the performance of the machine and to extend the life of the product.
The following can help reduce treadmill noise:
1. Tighten the screws and bolts once a month.
2. Lubricate the running belt after 200 hours of use.
3. Place a suitable floor mat (such as the Domyos Training Mat) under your treadmill.
Cleaning:
1. Switch off and then unplug the treadmill.
2. Apply a small amound of mild, multi-purpose cleaner, using a 100% cotton cloth. Do not spray directly onto the walking belt and do not use acid or ammonia-based cleaning products.
3. Wipe the console and screens.
4. Remove any dust and grime from the hand rails, uprights, foot rails, frame and motor hood. In addition, wipe the deck along the sides of the walking belt. Do not wipe under the walking belt.
1. Locate the coloured indicators at the back of your treadmill. If they appear red, the band needs to be re-centred. This will enable you to protect the running belt and prevent the machine from stopping when you aren't expecting it to.
2. Turn your treadmill to 4 km/h (2.5 mph) and stand at the back of the machine.
3. If the belt has shifted towards the left: Turn the left adjustment screw through half a rotation, in a clockwise direction.
4. If the belt has shifted towards the right: Turn the right adjustment screw through half a rotation, in a clockwise direction.
5. Leave your treadmill running for the time it takes for the belt to move across (1 to 2 minutes) and repeat the operation if necessary.
Make sure, however, that you do not over-stretch the belt.
The running belt will be subjected to wear and tear and become less taut over time. Be sure to tighten it as soon as it starts to slip (a skidding sensation, with jerky changes of speed).
1&2. Turn the 2 adjustment screws through half a rotation, in a clockwise direction. Repeat this step if necessary but make sure you don't over-stretch the belt.
3. La bande est correctement tendue si vous pouvez soulever les bords de 2 à 3 cm de chaque côté.
It is imperative that you keep your treadmill well-lubricated, so as to limit the amount of friction between the running belt and the deck. No lubrication is necessary if traces of silicone are present on the inner side of the running belt or on the deck (and the surface is damp and slightly greasy).
If the belt and the deck are dry:
1. Switch off your treadmill and unplug it.
2. Lift up the sides of the running belt and coat the inner surface with silicone.*
3. Plug your treadmill in again.
4. Make the belt rotate at a speed of 4 km/h (2.5 mph), with no-one on it, for 10 to 20 seconds.
5. Your treadmill is ready for use!
* A single lubrication corresponds to a dose of between 5 and 10 ml of silicone.
Please note that if you use too much silicone, you could harm the proper functioning of your treadmill (risk of skidding).
When buying lubricants, consult your local DECATHLON store or go to www.domyos.com.
You need the instruction manual? Click here to download
